Description

Designing and engineering

- Charge Geometry: The geometric shape of shaped charge is carefully designed. The shape and radius of the charge is so made so that maximum convergence of energy and optimum operation is attained when it is being used in scalloped hollow carriers. This entails careful mathematical modeling and simulation of exploding energetic material shape on detonation.

- Detailed Parameters:The size of the hollow carriers is taken care of in its manufacturing. The charge is precisely fitted in the carrier so it can be aligned and perform well. The manufacturing process is tightly controlled in relation to its tolerance so it can give a perfect fit.

Manufacturing process

- Explosive Material Selection: The calibre explosives materials are chosen based on stability and release of energy. The materials go under rigid testing for stringent requirements of functionality and safety. The materials have to be chosen on bases of stability, sensitivity, and detonation velocity.

- Assembly: Shaped charges are constructed in a workshop under controlled environments. Specialized machines are employed for maintaining precision in position of other materials, along with the position of the explosive material. Each of these process steps is followed carefully in an attempt to provide quality.

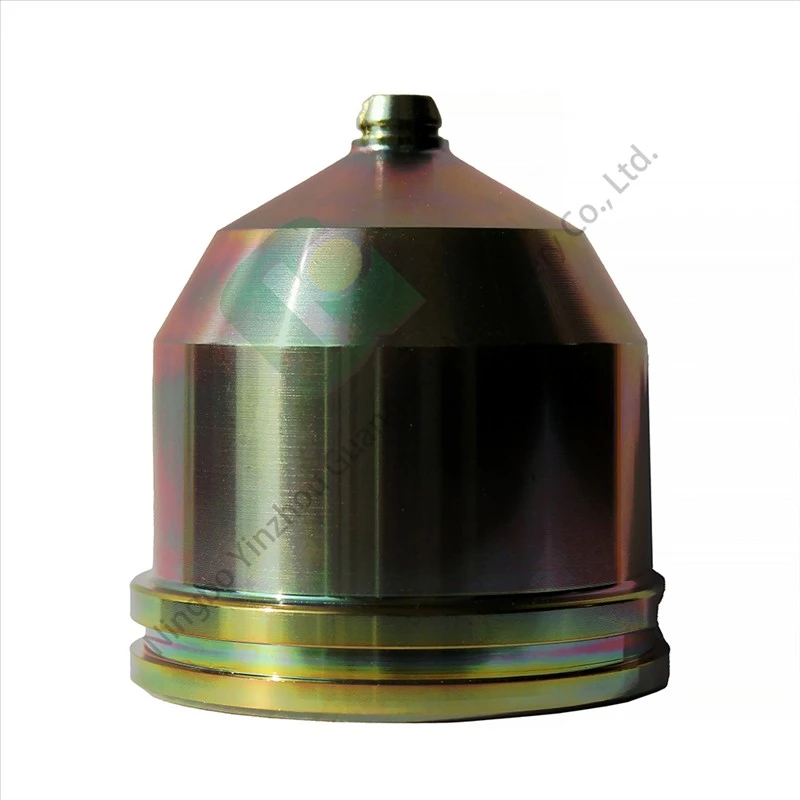

EQF Shaped Charges for Scalloped Hollow Carrier Guns 2

EQF Shaped Charges for Scalloped Hollow Carrier Guns 5001

Quality Control

- Testing Procedure: Testing is stringent in various manufacturing steps. Nondestructive testing is being utilized for determination of internal flaws in the charges. Performance testing is being made, too, in simulated environments for live detonations for power focusing confirming and penetrating power of shaped charges.

- Certification: The shaped chargers of EQF must comply with international functionality and safety requirements. The authorities in each case certify these, which assures an industrial usage satisfaction.

Safety Protocols

- Handling and Storage Procedure: Proper procedure for storage and handling of shaped charges of EQF have been maintained. The operators have been instructed in procedure so as not to inadvertently explode it. Storage facilities have been designed in a way such as not to expose it to extreme temperature, humidity, and other environmental factors, which can have a detrimental effect on stability of the charges.

- Transportation: Shaped charges in transport are encapsulated in protective cases for absorption of shock. The process of transportation is regulated for observance of requirements of safety.

Detailed Parameters:

	Shaped Charge Information			API Performance of Shaped Charges
Gun OD (in) [mm]	Type	Explosive Weight (g)	Explosive Type	Tested Gun OD (in) [mm]	Shot Density (spf) [spm] \| Phasing	Casing OD (in) [mm]	Entry Hole (in) [mm]	Penetration (in) [cm]	Data Type
Shaped Charges for Scalloped Hollow Carrier Guns (Section 02)
1-3/8 [35]	Deep Penetrating Charge	1.8	HMX	1-3/8 [35]	4 [13] \| 0°	4-1/2 [114]	0.17 [4.32]	4.70 [11.94]	API RP-43
1-9/16 [40]	Super Deep Penetrating Charge	3.5	HMX	1-9/16 [40]	6 [20] \| 0°, 60°	2-3/8 [60]	0.20 [5.08]	12.68 [32.21]	API RP 19B
	Deep Penetrating Charge	3.2	RDX	1-9/16 [40]	4 [13] \| 180°	2-3/8 [60]	0.23 [5.84]	6.62 [16.81]	API RP-43
	Big Hole Charge	3.2	HMX	1-9/16 [40]	6 [20] \| 0°	4-1/2 [114]	0.41 [10.41]	3.23 [8.20]	API RP-43
2 [51]	Super Deep Penetrating Charge	4.0	HMX	2 [51]	6 [20] \| 60°	2-7/8 [73]	0.21 [5.33]	19.05 [48.39]	API RP 19B
	Super Deep Penetrating Charge	7.0	HMX	2 [51]	6 [20] \| 60°	2-7/8 [73]	0.29 [7.37]	26.07 [66.22]	API RP 19B
	"Good Hole" Charge	6.5	RDX	2 [51]	4 [13] \| 60°	2-7/8 [73]	0.36 [9.14]	11.82 [30.02]	API RP-43
2-1/2 [64]	Super Deep Penetrating Charge	12.0	HMX	2-1/2 [64]	6 [20] \| 60°	3-1/2 [89]	0.33 [8.38]	31.26 [79.40]	API RP 19B
	"Good Hole" Charge	12.0	HMX	2-1/2 [64]	6 [20] \| 60°	3-1/2 [89]	0.45 [11.43]	20.31 [51.99]	API RP 19B
	Big Hole Charge	11.0	RDX	2-1/2 [64]	4 [13] \| 0°	4-1/2 [114]	0.59 [14.99]	4.85 [12.32]	API RP-43
2-3/4 [70] & 2-7/8 [73]	Super Deep Penetrating Charge	12.0	HMX	2-3/4 [70]	6 [20] \| 60°	4-1/2 [114]	0.36 [9.14]	31.90 [81.03]	API RP 19B
	Super Deep Penetrating Charge	16.0	HMX	2-3/4 [70]	6 [20] \| 60°	4-1/2 [114]	0.38 [9.65]	35.94 [91.29]	API RP 19B
	Super Deep Penetrating Charge	18.0	HMX	2-3/4 [70]	6 [20] \| 60°	4-1/2 [114]	0.41 [10.41]	36.22 [92.00]	API RP 19B
	Super Deep Penetrating Charge	18.0	HMX	2-7/8 [73]	6 [20] \| 60°	4-1/2 [114]	0.41 [10.41]	36.22 [92.00]	API RP 19B
	EQUAfrac Consistent Hole Charge	12.0	RDX	2-3/4 [70]	6 [20] \| 60°	4-1/2 [114]	0.30 [7.62]	24.00 [60.96]	API RP 19B
	EQUAfrac Consistent Hole Charge	16.0	RDX	2-3/4 [70]	6 [20] \| 60°	4-1/2 [114]	0.32 [8.13]	25.79 [65.51]	API RP 19B
	Big Hole Charge	11.0	RDX	2-1/2 [64]	4 [13] \| 0°	4-1/2 [114]	0.59 [14.99]	4.85 [12.32]	API RP-43
	Big Hole Charge	15.0	RDX	2-3/4 [70]	6 [20] \| 60°	4-1/2 [114]	0.72 [18.29]	4.67 [11.86]	API RP-43
3-1/8 [79]	Super Deep Penetrating Charge	21.0	HMX	3-1/8 [79]	6 [20] \| 60°	4-1/2 [114]	0.42 [10.67]	44.19 [112.24]	API RP 19B
	Super Deep Penetrating Charge	22.7	HMX	3-3/8 [86]	6 [20] \| 60°	4-1/2 [114]	0.46 [11.68]	41.17 [104.57]	API RP 19B
	Super Deep Penetrating Charge	21.0	HMX	4-1/2 [114]	12 [39] \| 135/45°	7 [178]	0.37 [9.40]	35.97 [91.36]	API RP 19B
	EQUAfrac Consistent Hole Charge	23.0	HMX	3-1/8 [79]	6 [20] \| 60°	4-1/2 [114]	0.40 [10.16]	24.75 [62.87]	API RP 19B
	Deep Penetrating Charge	12.0	HMX	3-1/8 [79]	12 [39] \| 135/45°	5 [127]	0.31 [7.87]	19.82 [50.34]	API RP-43
	Deep Penetrating Charge	19.0	RDX	3-3/8 [86]	6 [20] \| 60°	4-1/2 [114]	0.41 [10.41]	22.04 [55.98	API RP-43
	Deep Penetrating Charge	22.7	RDX	3-3/8 [86]	6 [20] \| 60°	4-1/2 [114]	0.44 [11.18]	21.25 [53.98]	API RP-43
	"Good Hole" Charge	19.0	HMX	3-1/8 [79]	6 [20] \| 60°	4-1/2 [114]	0.55 [13.97]	29.18 [74.12]	API RP 19B
	"Good Hole" Charge	21.0	HMX	3-1/8 [79]	6 [20] \| 60°	4-1/2 [114]	0.56 [14.22]	29.23 [74.24]	API RP 19B
	"Good Hole" Charge	21.0	HMX	4-1/2 [114]	12 [39] \| 135/45°	7 [178]	0.46 [11.68]	22.02 [55.93]	API RP 19B
	"Good Hole" Charge	22.7	HMX	3-3/8 [86]	6 [20] \| 60°	4-1/2 [114]	0.59 [14.99]	29.42 [74.73]	API RP 19B
	Big Hole Charge	12.0	RDX	3-3/8 [86]	12 [39] \| 140/20°	5 [127]	0.55 [13.97]	4.68 [11.89]	API RP 19B
	Big Hole Charge	12.0	HMX	3-1/8 [79]	12 [39] \| 140/20°	5 [127]	0.60 [15.24]	5.73 [14.55]	API RP-43
	Big Hole Charge	21.0	RDX	4-1/2 [114]	12 [39] \| 135/45°	7 [178]	0.67 [17.02]	5.49 [13.94]	API RP-43
	Big Hole Charge	22.7	RDX	3-3/8 [86]	6 [20] \| 60°	4-1/2 [114]	0.70 [17.78]	6.18 [15.70]	API RP-43
3-3/8 [86]	Super Deep Penetrating Charge	19.0	HMX	3-1/8 [79]	6 [20] \| 60°	4-1/2 [114]	0.38 [9.65]	45.89 [116.56]	API RP 19B
	Super Deep Penetrating Charge	21.0	HMX	3-1/8 [79]	6 [20] \| 60°	4-1/2 [114]	0.42 [10.67]	44.19 [112.24]	API RP 19B
	Super Deep Penetrating Charge	22.7	HMX	3-3/8 [86]	6 [20] \| 60°	4-1/2 [114]	0.45 [11.43]	42.21 [107.21]	API RP 19B
	Super Deep Penetrating Charge	26.0	HMX	3-3/8 [86]	6 [20] \| 60°	4-1/2 [114]	0.41 [10.41]	50.05 [127.13]	API RP 19B
	EQUAfrac Consistent Hole Charge	23.0	HMX	3-3/8 [86]	6 [20] \| 60°	5-1/2 [140]	0.38 [9.65]	31.59 [80.25]	API RP 19B
	Deep Penetrating Charge	12.0	HMX	3-1/8 [79]	12 [39] \| 135/45°	5 [127]	0.31 [7.87]	19.82 [50.34]	API RP-43
	Deep Penetrating Charge	19.0	RDX	3-3/8 [86]	6 [20] \| 60°	4-1/2 [114]	0.41 [10.41]	22.04 [55.98]	API RP-43
	Deep Penetrating Charge	22.7	RDX	3-3/8 [86]	6 [20] \| 60°	4-1/2 [114]	0.44 [11.18]	21.25 [53.98]	API RP-43
	Deep Penetrating Charge	22.7	HMX	3-3/8 [86]	6 [20] \| 60°	4-1/2 [114]	0.36 [9.14]	35.63 [90.50]	API RP-43
	"Good Hole" Charge	25.0	RDX	3-3/8 [86]	6 [20] \| 60°	4-1/2 [114]	0.57 [14.48]	29.81 [75.72]	API RP-43
	"Good Hole" Charge	19.0	HMX	3-1/8 [79]	6 [20] \| 60°	4-1/2 [114]	0.55 [13.97]	29.18 [74.12]	API RP 19B
	"Good Hole" Charge	22.7	HMX	3-3/8 [86]	6 [20] \| 60°	4-1/2 [114]	0.59 [14.99]	29.42 [74.73]	API RP 19B
	Big Hole Charge	12.0	HMX	3-3/8 [86]	12 [39] \| 140/20°	5 [127]	0.55 [13.97]	4.68 [11.89]	API RP 19B
	Big Hole Charge	12.0	HMX	3-3/8 [86]	12 [39] \| 135/45°	5-1/2 [140]	0.61 [15.49]	5.89 [14.96]	API RP-43
	Big Hole Charge	22.7	RDX	3-1/8 [79]	6 [20] \| 60°	4-1/2 [114]	0.68 [17.27]	7.10 [18.03]	API RP 19B
	Big Hole Charge	22.7	RDX	3-3/8 [86]	6 [20] \| 60°	4-1/2 [114]	0.70 [17.78]	6.18 [15.70]	API RP-43
4 [102]	Super Deep Penetrating Charge	21.0	HMX	3-1/8 [79]	6 [20] \| 60°	4-1/2 [114]	0.42 [10.67]	44.19 [112.24]	API RP 19B
	Super Deep Penetrating Charge	22.7	HMX	3-3/8 [86]	6 [20] \| 60°	4-1/2 [114]	0.45 [11.43]	42.21 [107.21]	API RP 19B
	Super Deep Penetrating Charge	26.0	HMX	3-3/8 [86]	6 [20] \| 60°	4-1/2 [114]	0.41 [10.41]	50.05 [127.13]	API RP 19B
	Super Deep Penetrating Charge	38.5	HMX	4 [102]	4 [13] \| 90°	5-1/2 [140]	0.44 [11.18]	62.81 [159.54]	API RP 19B
	Super Deep Penetrating Charge	21.0	HMX	4-1/2 [114]	12 [39] \| 135/45°	7 [178]	0.37 [9.40]	35.97 [91.36]	API RP 19B
	Super Deep Penetrating Charge	38.5	HMX	4-1/2 [114]	5 [16] \| 60°	7 [178]	0.46 [11.68]	55.70 [141.48]	API RP 19B
	Deep Penetrating Charge	19.0	RDX	3-3/8 [86]	6 [20] \| 60°	4-1/2 [114]	0.41 [10.41]	22.04 [55.98]	API RP-43
	Deep Penetrating Charge	22.7	RDX	3-3/8 [86]	6 [20] \| 60°	4-1/2 [114]	0.44 [11.18]	21.25 [53.98]	API RP-43
	Deep Penetrating Charge	22.7	HMX	3-3/8 [86]	6 [20] \| 60°	4-1/2 [114]	0.36 [9.14]	35.63 [90.50]	API RP-43
	"Good Hole" Charge	19.0	HMX	3-1/8 [79]	6 [20] \| 60°	4-1/2 [114]	0.55 [13.97]	29.18 [74.12]	API RP 19B
	"Good Hole" Charge	22.7	HMX	3-3/8 [86]	6 [20] \| 60°	4-1/2 [114]	0.59 [14.99]	29.42 [74.73]	API RP 19B
	"Good Hole" Charge	25.0	RDX	3-3/8 [86]	6 [20] \| 60°	5-1/2 [140]	0.56 [14.22]	35.61 [90.45]	API RP-43
	"Good Hole" Charge	21.0	HMX	4-1/2 [114]	12 [39] \| 135/45°	7 [178]	0.46 [11.68]	22.02 [55.93]	API RP 19B
	Big Hole Charge	21.0	RDX	4-1/2 [114]	12 [39] \| 135/45°	7 [178]	0.67 [17.02]	5.49 [13.94]	API RP-43
4-1/2 [114]	Super Deep Penetrating Charge	26.0	HMX	3-3/8 [86]	6 [20] \| 60°	4-1/2 [114]	0.41 [10.41]	50.05 [127.13]	API RP 19B
	Super Deep Penetrating Charge	21.0	HMX	4-1/2 [114]	12 [39] \| 135/45°	7 [178]	0.37 [9.40]	35.97 [91.36]	API RP 19B
	Super Deep Penetrating Charge	38.5	HMX	4-1/2 [114]	5 [16] \| 60°	7 [178]	0.46 [11.68]	55.70 [141.48]	API RP 19B
	"Good Hole" Charge	25.0	RDX	4 [102]	6 [20] \| 60°	5-1/2 [140]	0.56 [14.22]	35.61 [90.45]	API RP-43
	"Good Hole" Charge	21.0	HMX	4-1/2 [114]	12 [39] \| 135/45°	7 [178]	0.46 [11.68]	22.02 [55.93]	API RP 19B
	Big Hole Charge	21.0	RDX	4-1/2 [114]	12 [39] \| 135/45°	7 [178]	0.67 [17.02]	5.49 [13.94]	API RP-43
	Big Hole Charge	22.7	HMX	4-5/8 [117]	16 [52] \| 140/20°	7 [178]	0.79 [20.07]	7.06 [17.93]	API RP 19B
4-5/8 [117]	Super Deep Penetrating Charge	26.0	HMX	3-3/8 [86]	6 [20] \| 60°	4-1/2 [114]	0.41 [10.41]	50.05 [127.13]	API RP 19B
	Super Deep Penetrating Charge	21.0	HMX	4-1/2 [114]	12 [39] \| 135/45°	7 [178]	0.37 [9.40]	35.97 [91.36]	API RP 19B
	Super Deep Penetrating Charge	38.5	HMX	4-1/2 [114]	5 [16] \| 60°	7 [178]	0.46 [11.68]	55.70 [141.48]	API RP 19B
	"Good Hole" Charge	25.0	RDX	4 [102]	6 [20] \| 60°	5-1/2 [140]	0.56 [14.22]	35.61 [90.45]	API RP-43
	"Good Hole" Charge	21.0	HMX	4-1/2 [114]	12 [39] \| 135/45°	7 [178]	0.46 [11.68]	22.02 [55.93]	API RP 19B
	Big Hole Charge	21.0	RDX	4-1/2 [114]	12 [39] \| 135/45°	7 [178]	0.67 [17.02]	5.49 [13.94]	API RP-43
	Big Hole Charge	22.7	HMX	4-5/8 [117]	16 [52] \| 140/20°	7 [178]	0.75 [19.05]	6.11 [15.52]	API RP 19B
	Big Hole Charge	28.0	BH	5 [127]	12 [39] \| 150/30°	7 [178]	0.80 [20.32]	8.22 [20.88]	API RP-43
7 [178]	Super Deep Penetrating Charge	38.5	HMX	7 [178]	12 [39] \| 135/45°	9-5/8 [245]	0.40 [10.16]	49.60 [125.98]	API RP 19B
	"Good Hole" Charge	38.5	RDX	7 [178]	12 [39] \| 135/45°	9-5/8 [245]	0.75 [19.06]	28.54 [72.49]	API RP-43
	Big Hole Charge	38.8	RDX	7 [178]	12 [39] \| 135/45°	9-5/8 [245]	1.10 [27.94]	10.37 [26.34]	API RP 19B
	Big Hole Charge	45.0	RDX	7 [178]	18 [55] \| 140/20°	9-5/8 [245]	1.20 [30.48]	8.75 [22.23]	API RP 19B
